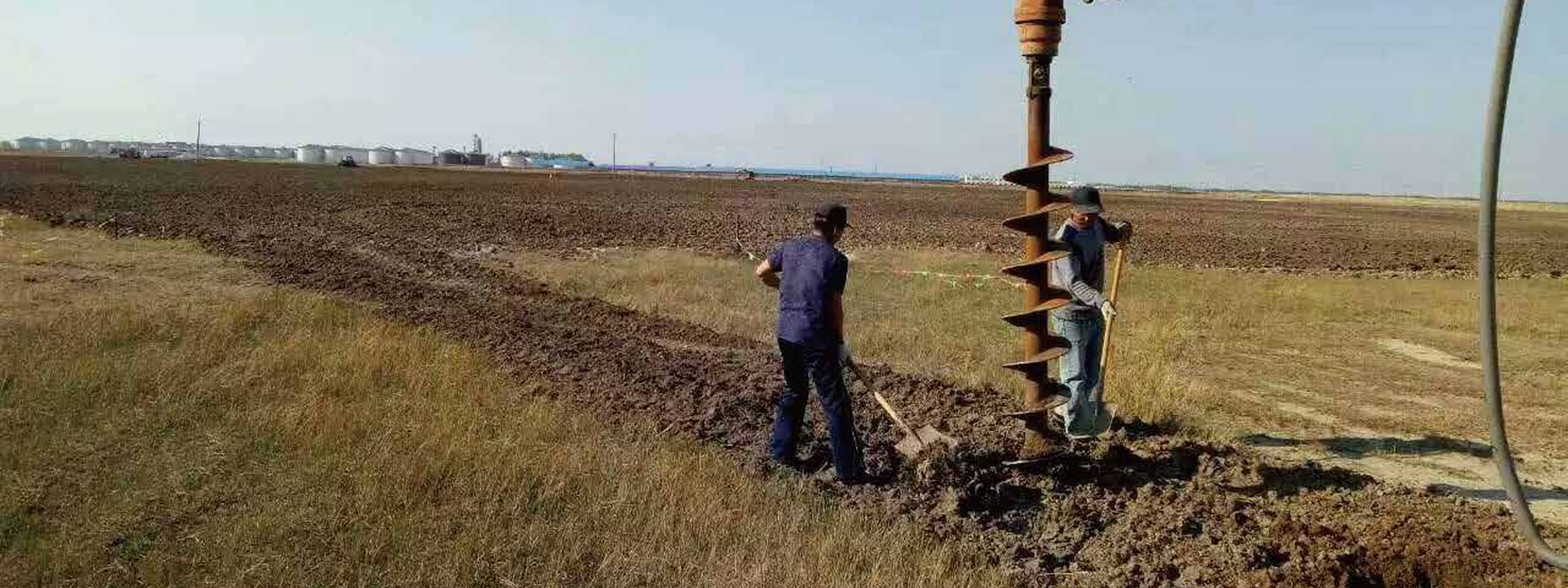

HMA series hydraulic auger drive on site

HM Attachment / Products / Auger Drives

Auger Drives

Standard, high speed and horizontal auger drives built for reliable rotational power across 0.5-52 ton excavators.

Section 1

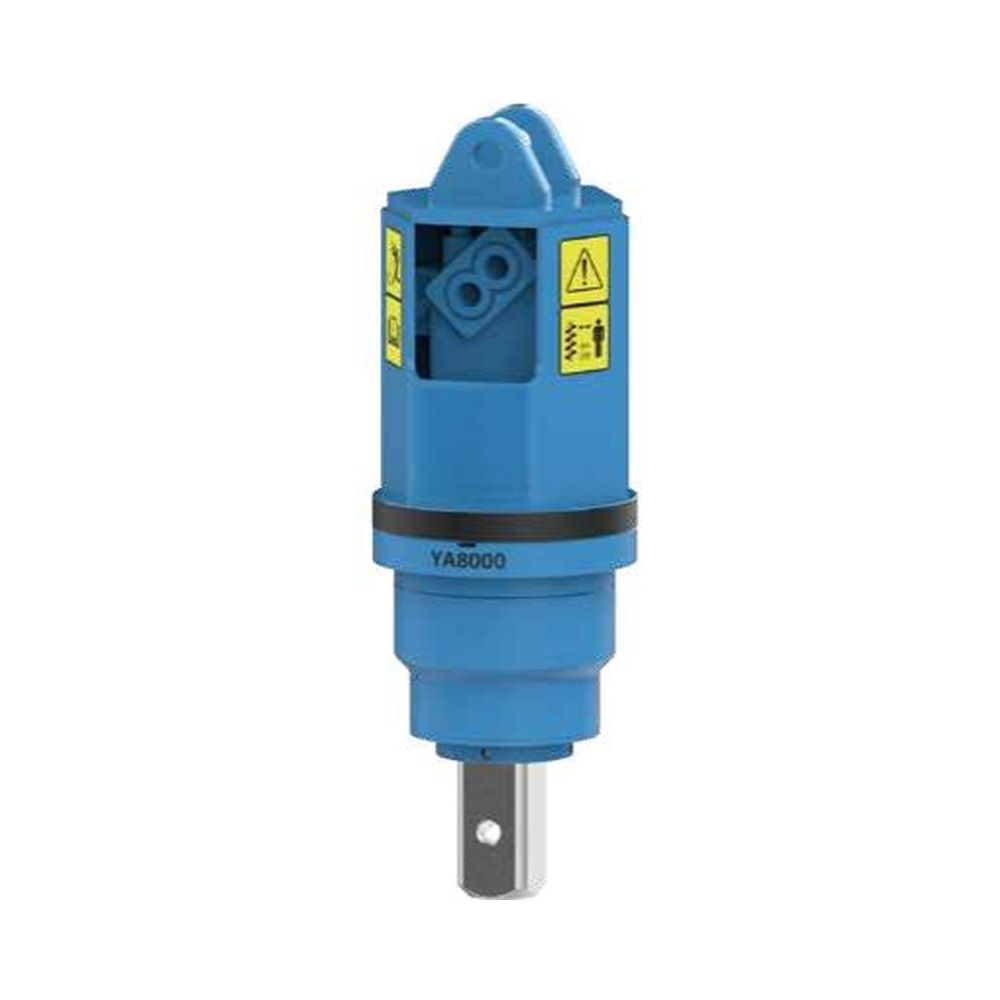

Standard Auger Drive

The HMA series hydraulic auger drive couples a hydraulic motor with a planetary gearbox for powerful, reliable rotational drilling. Ten models cover 0.5-52 ton excavators with torque from 1,900 N·m up to 100,000 N·m, suited to piling, fence, pole, well and foundation drilling.

Drives accept round, hex or square shanks (configurable per machine) and are matched to the full range of HMA hitches and auger flights for complete, dependable drilling systems.

Ten models, 1,900-100,000 N·m
0.5-52 ton excavator range
Hydraulic motor + planetary gearbox
Round / hex / square shank
Configurable hose and shaft

Model Range (10 Models)

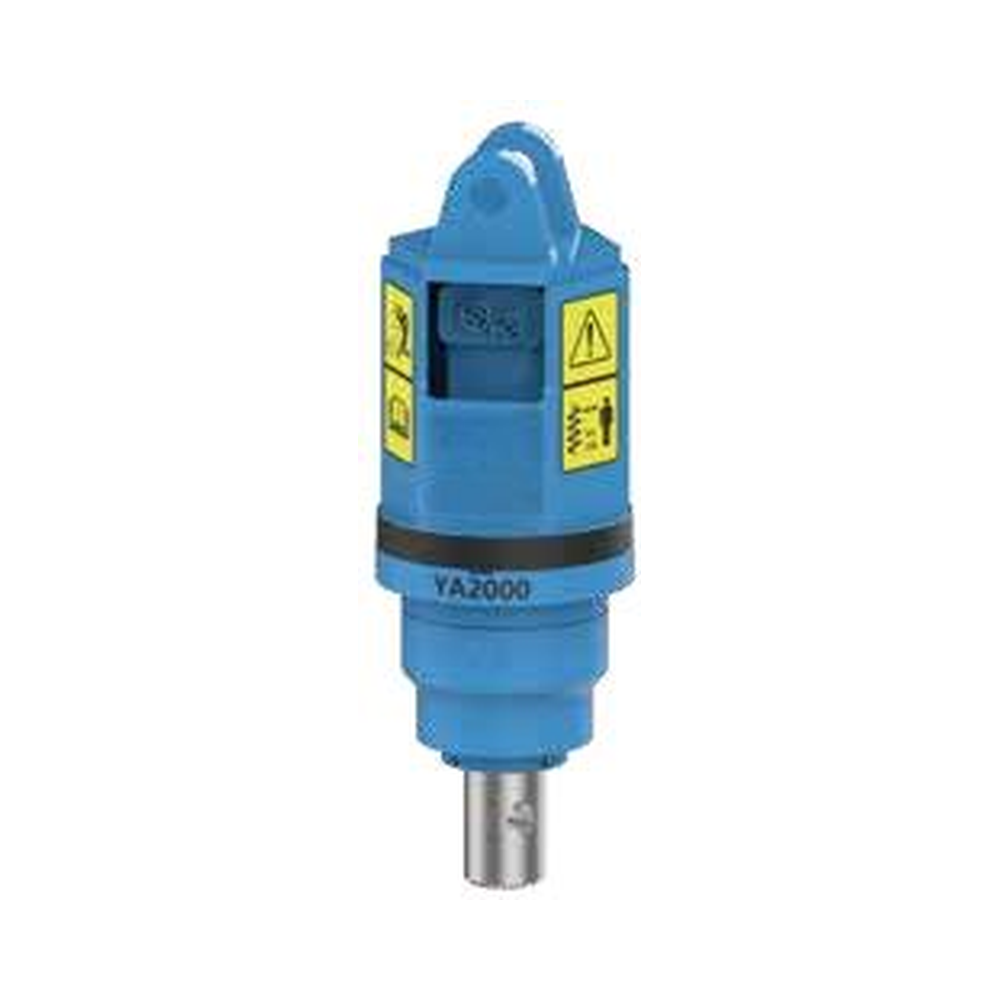

HMA-2000

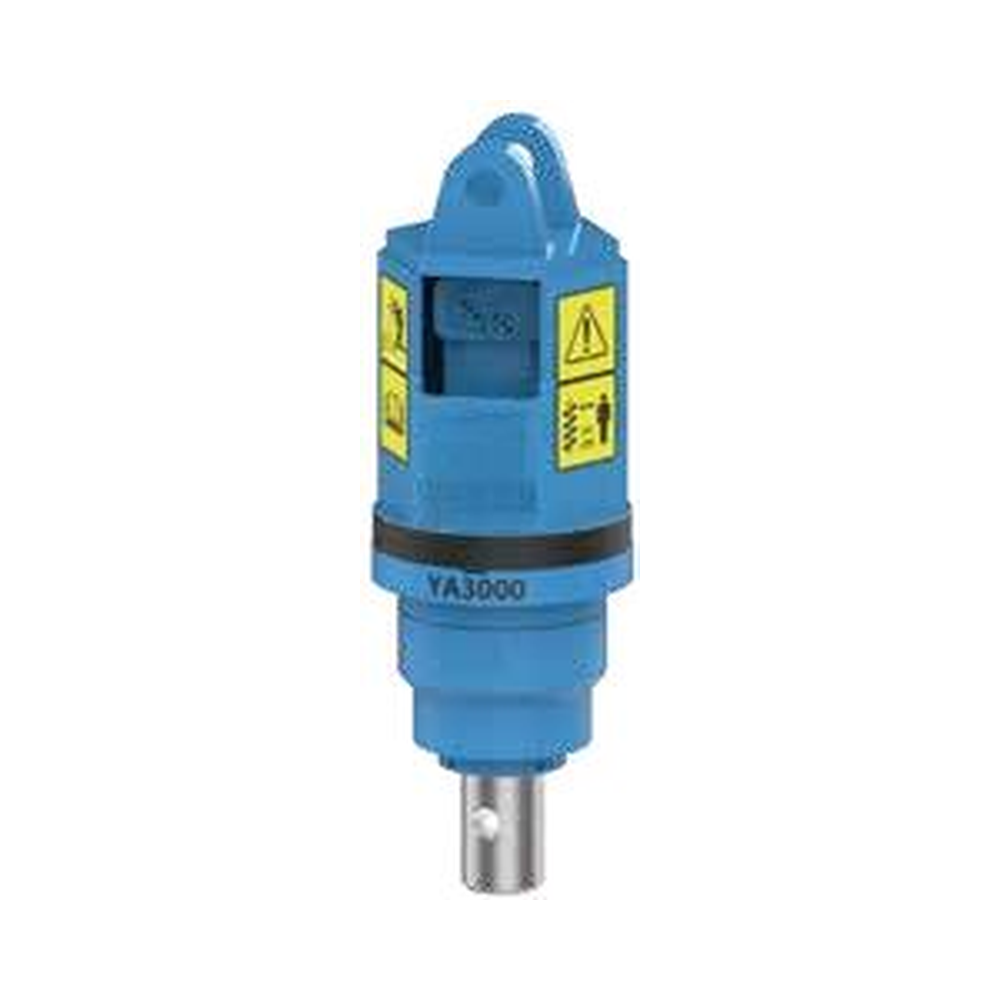

HMA-3000

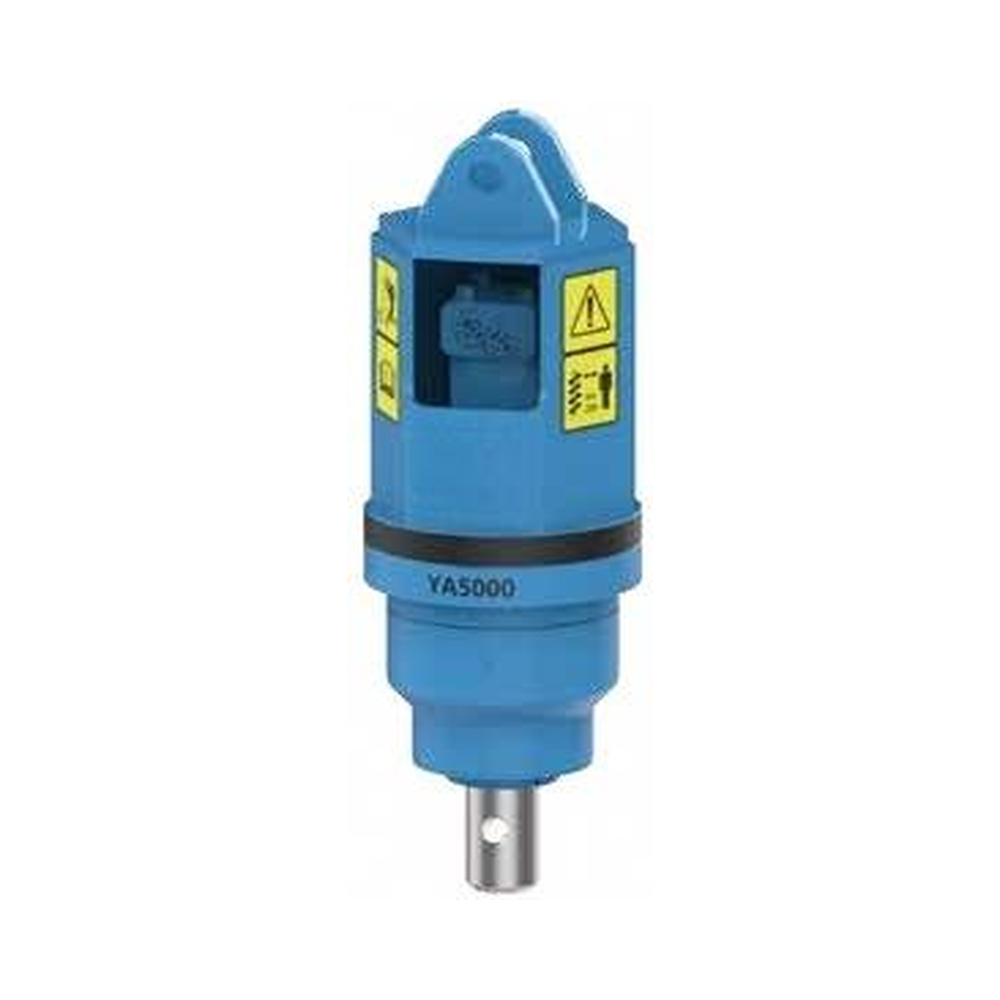

HMA-5000

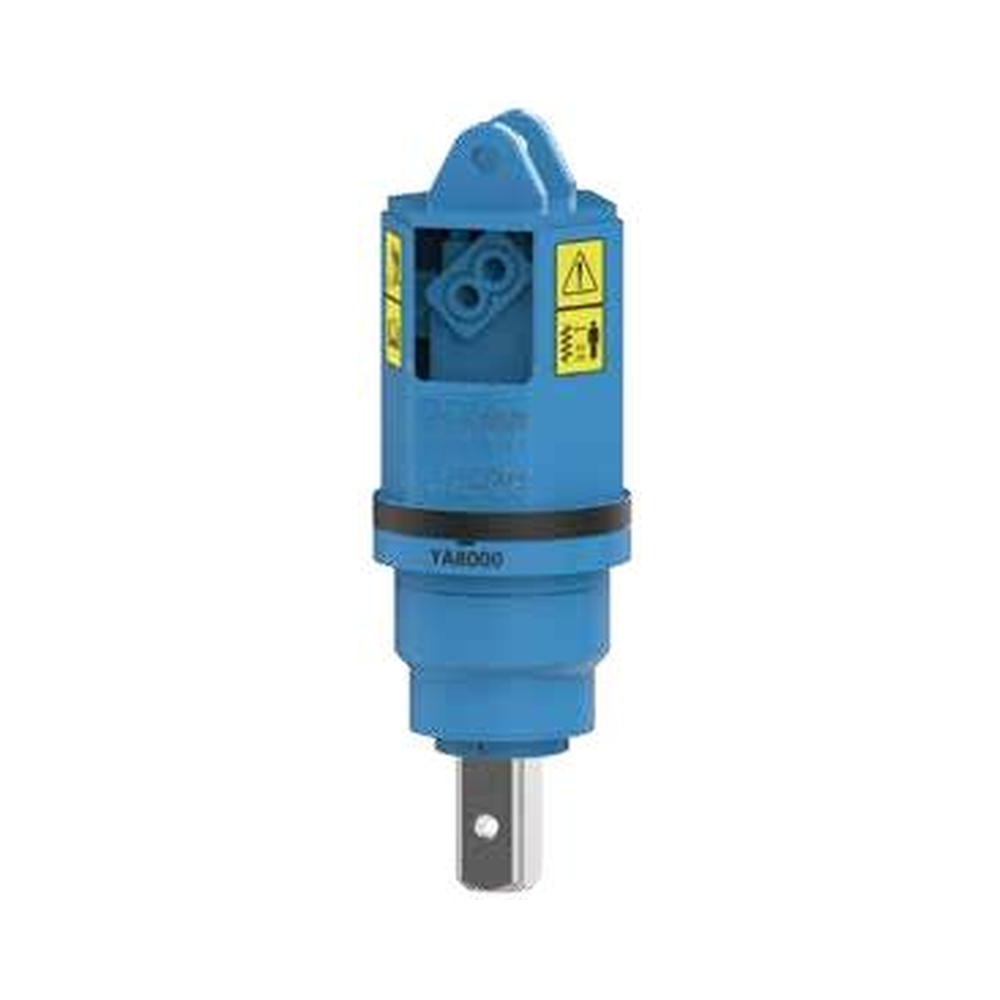

HMA-8000

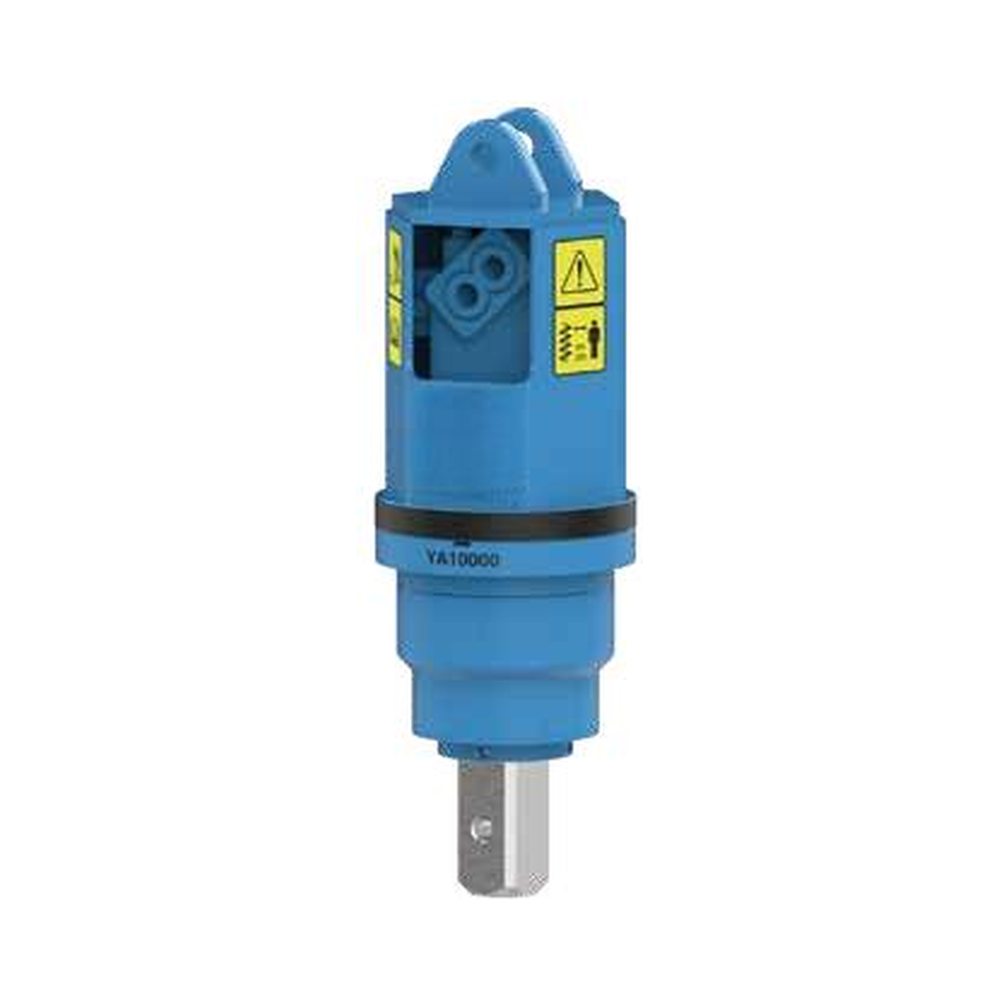

HMA-10000

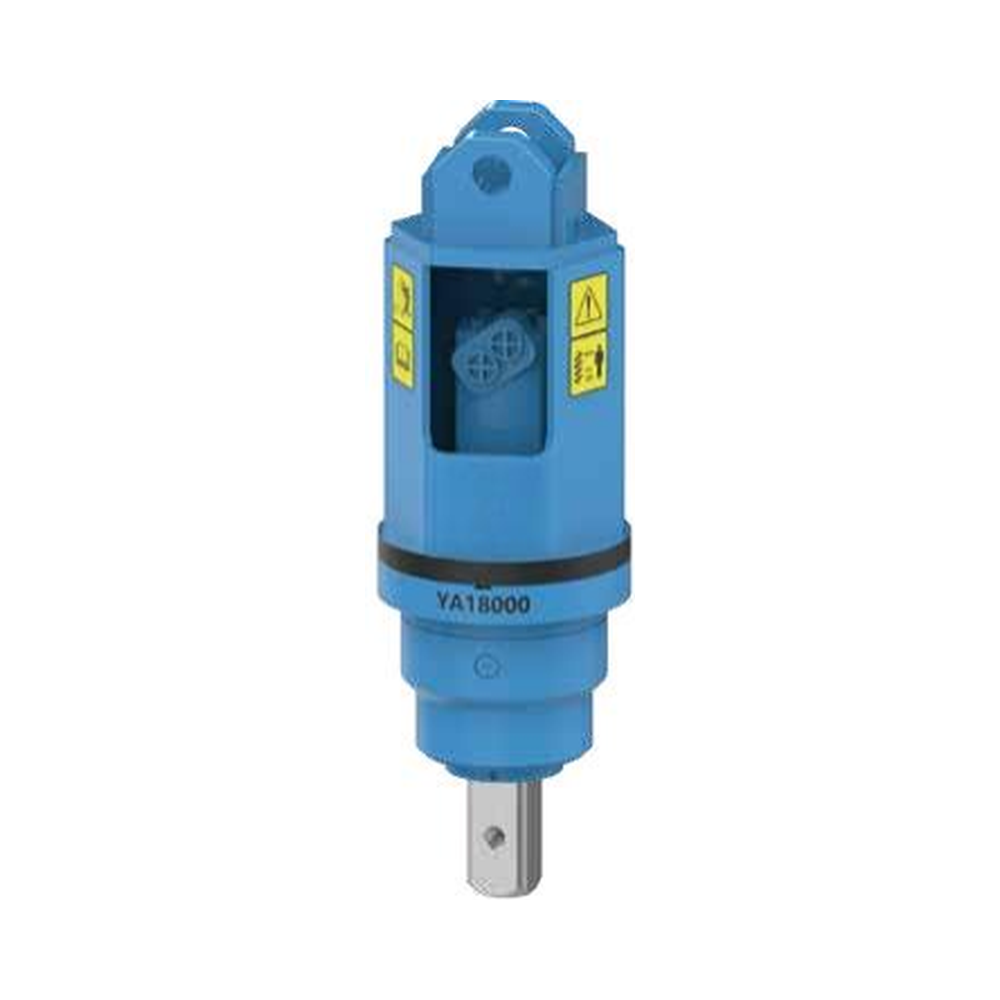

HMA-18000

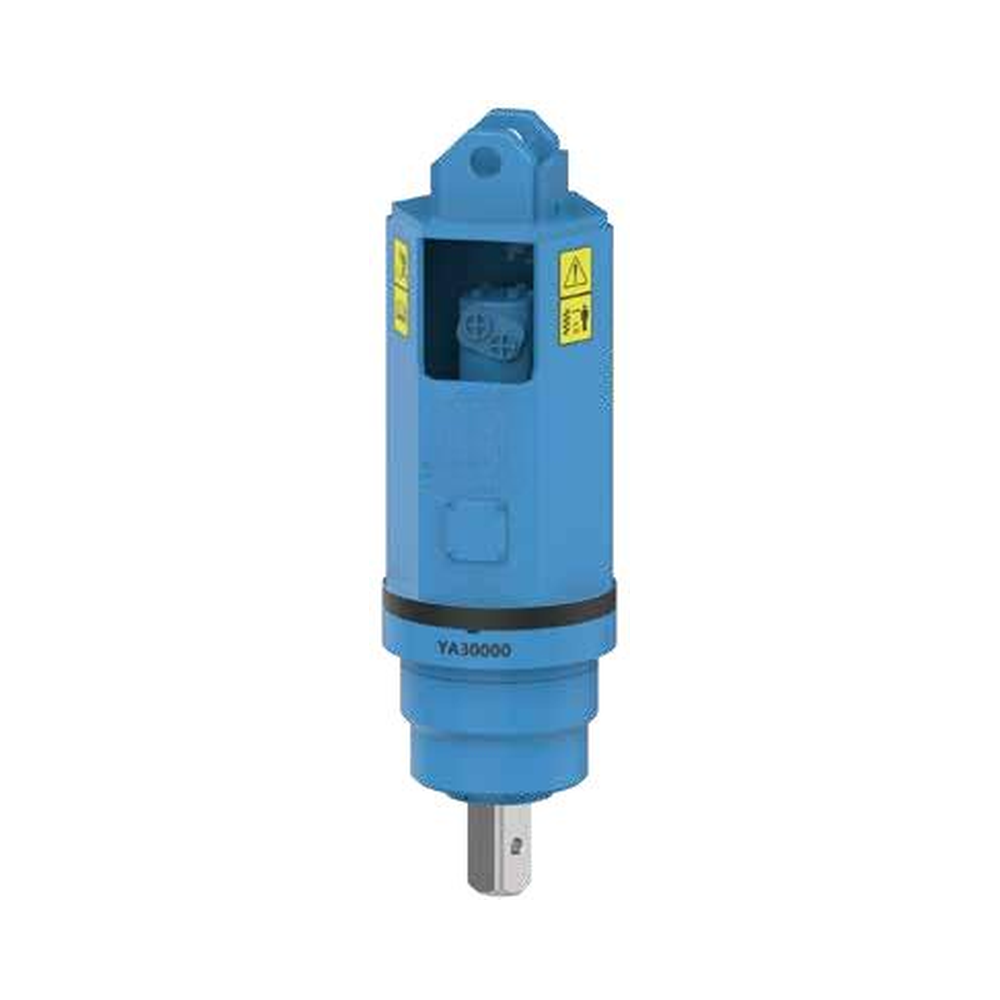

HMA-30000

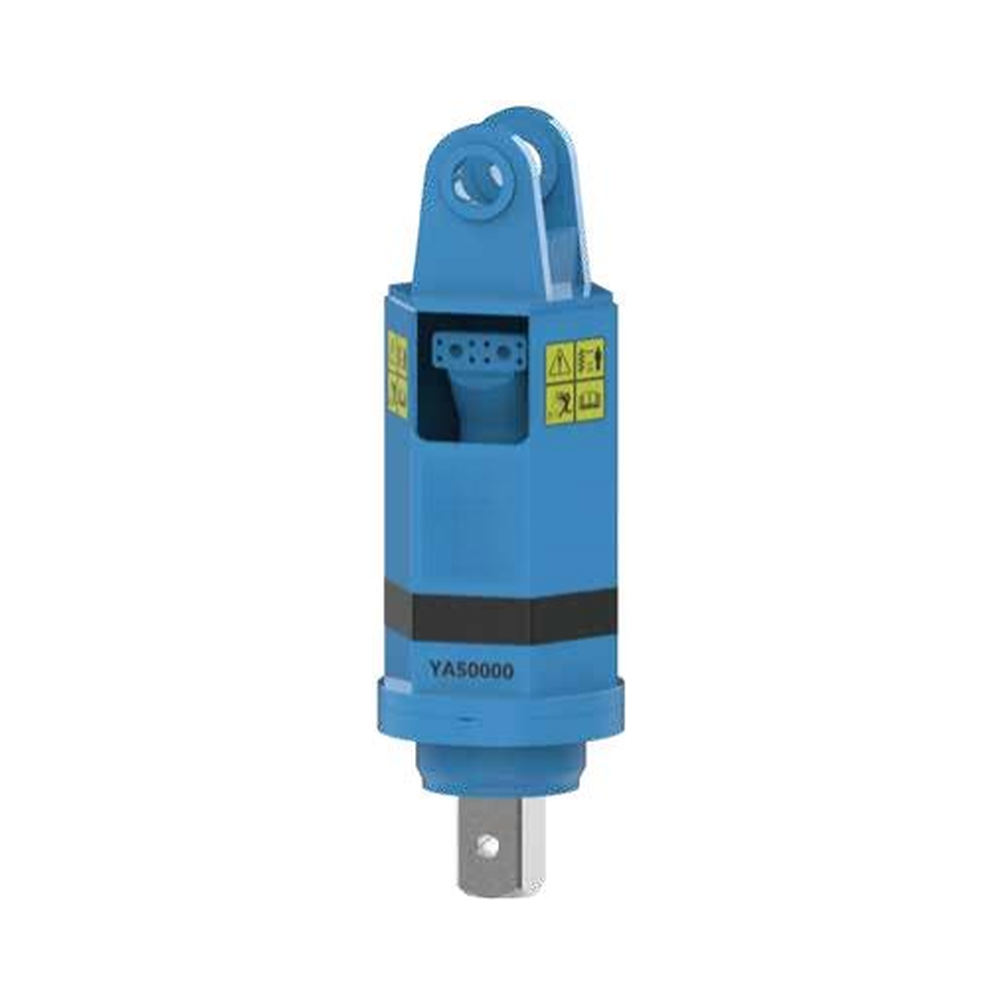

HMA-50000

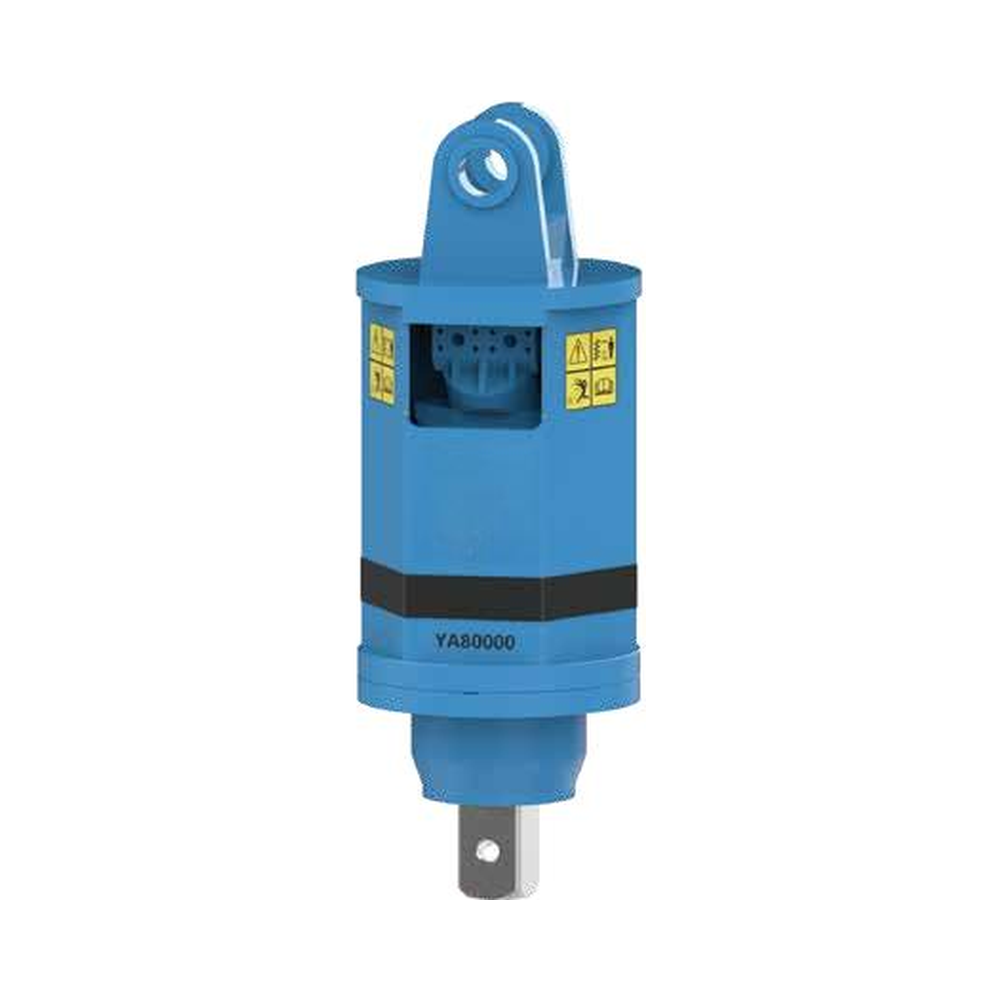

HMA-80000

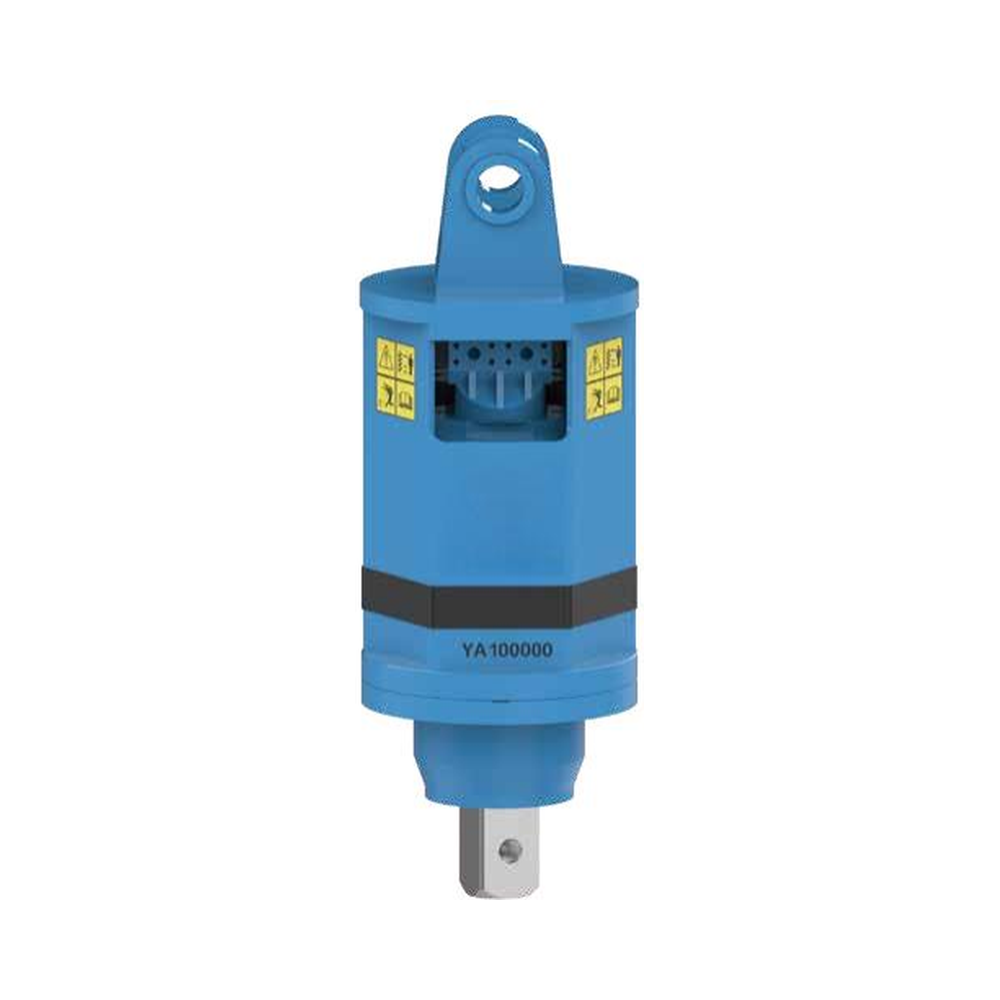

HMA-100000

Specification (10 Models)

Model	Excavator	Max Torque	Pressure	Oil Flow	Rated Power	Output Speed	Weight	Overall Length	Hose	Shaft
HMA-2000	0.5-2 ton	1,900 Nm	70-240 bar	27-75 LPM	19 kW	30-95 RPM	41 kg	606 mm	1/2" BSP	65mm round / 2" hex / 57mm square
HMA-3000	1-3 ton	3,000 Nm	70-240 bar	27-75 LPM	24 kW	35-88 RPM	41 kg	606 mm	1/2" BSP	65mm round / 2" hex / 57mm square
HMA-5000	3-4.5 ton	5,000 Nm	80-240 bar	50-95 LPM	42 kW	42-80 RPM	66 kg	687 mm	1/2" BSP	65mm round / 2" hex / 57mm square
HMA-8000	4.5-8 ton	8,000 Nm	80-260 bar	60-135 LPM	67 kW	35-80 RPM	124 kg	808 mm	1/2" or 3/4" BSP	2.5" hex / 75mm square
HMA-10000	5-10 ton	10,000 Nm	80-260 bar	60-135 LPM	80 kW	35-80 RPM	131 kg	808 mm	1/2" or 3/4" BSP	2.5" hex / 75mm square
HMA-18000	8-15 ton	18,000 Nm	80-240 bar	80-170 LPM	80 kW	20-42 RPM	165 kg	937 mm	3/4" BSP	75mm square
HMA-30000	15-22 ton	30,000 Nm	160-260 bar	80-170 LPM	94 kW	12-28 RPM	255 kg	1158 mm	1" BSP	75mm square
HMA-50000	20-36 ton	50,000 Nm	220-350 bar	100-300 LPM	157 kW	0-30 RPM	460 kg	1354 mm	1" BSP 1-1/4	110mm square
HMA-80000	26-40 ton	80,000 Nm	220-350 bar	200-400 LPM	167 kW	0-20 RPM	770 kg	1572 mm	SAE FS-20 1-1/4"	110mm square
HMA-100000	32-52 ton	100,000 Nm	250-300 bar	300-477 LPM	157 kW	0-15 RPM	1050 kg	1725 mm	SAE FS-20 G1-1/4"	110mm square

Drilling Performance

Maximum Drilling Depth Reference

Maximum drilling depth by model, ground type, and auger diameter (meters)

Model	Auger Diameter	Max Depth — Soft Ground (m)	Max Depth — Medium Ground (m)	Max Depth — Hard Ground (m)
HMA-2000	150 mm	3.5	3.5	3
	200 mm	3	3	3
	250 mm	2.5	2.4	2.2
	300 mm	2.5	2.4	2.2
	350 mm	2.4	2.2	2
	400 mm	2	1.8	1.5
HMA-3000	150 mm	3.5	3.5	3
	200 mm	3	3	3
	250 mm	2.5	2.4	2.2
	300 mm	2.5	2.4	2.2
	350 mm	2.4	2.2	2
	400 mm	2	1.8	1.5
	450 mm	1.7	1.6	1.5
	500 mm	1.5	1.4	1.3
HMA-5000	150–600 mm	4.5	4.2	3.5
	650 mm	3.2	3.7	3.3
	700 mm	3	2.8	2.5
	750 mm	2.6	2.4	2.1
	800 mm	2	1.8	1.7
	850 mm	1.7	1.6	1.4
	900 mm	1.5	1.3	1.2
HMA-8000	150–500 mm	6.5	5.5	5
	550 mm	4.5	4.5	3.5
	600 mm	4	3.7	3.5
	650 mm	4	3.7	3.5
	700 mm	4	3.7	3.5
	750 mm	3.6	3.5	3.2
	800 mm	3	2.8	2.4
	850 mm	2.6	2.7	2.4
	900 mm	2.5	2.2	2
HMA-10000	150–500 mm	6.5	5.5	5
	550 mm	4.5	4.5	3.5
	600 mm	4	3.7	3.5
	650 mm	4	3.7	3.5
	700 mm	4	3.7	3.5
	750 mm	3.6	3.5	3.2
	800 mm	3	2.8	2.4
	850 mm	2.6	2.7	2.4
	900 mm	2.5	2.2	2
	1000 mm	2.3	1.9	1.5
HMA-18000	150–400 mm	8.6	7.6	7
	500 mm	7.2	6.4	5.8
	600 mm	7.1	6.4	5.7
	650 mm	7	6.2	5.5
	700 mm	6.5	5.8	5.4
	750 mm	6.1	5.4	5
	800 mm	6	5.3	4.8
	850 mm	5.7	5.2	4.6
	900 mm	5.5	5	4.6
	950 mm	5.3	4.6	4.3
	1000 mm	5	4.5	4.2
	1100 mm	4.7	4.2	4
	1200 mm	4.5	4	3.7
HMA-30000	150–400 mm	9	8.2	7.3
	450 mm	8.6	7.7	7
	500 mm	8.6	7.7	7
	550 mm	8.6	7.7	7
	600 mm	8.6	7.7	7
	650 mm	8.6	7.7	7
	700 mm	8.4	7.5	6.8
	800 mm	8	7.3	6.6
	900 mm	7.6	6.8	6.2
	1000 mm	7	6.3	5.7
	1100 mm	6.5	6	5.3
	1200 mm	6.3	5.7	5
	1500 mm	5	4.6	4
HMA-50000	300–450 mm	12	11	8
	500 mm	12	11	8
	550 mm	11	10	7
	600 mm	11	10	7
	650 mm	11	10	7
	700 mm	10	9	7
	800 mm	9	7	6
	900 mm	9	7	6
	1000 mm	8	6	5
	1100 mm	8	6	5
	1200 mm	7	5	5
	1500 mm	6	5	4
	1800 mm	4	3.3	2.5
HMA-80000	300–600 mm	15	11	8
	700 mm	14	10	7
	800 mm	14	10	7
	900 mm	14	10	7
	1000 mm	12	9	7
	1100 mm	12	9	7
	1200 mm	10	8	6
	1500 mm	8	7	6
	1800 mm	8	7	6
	2000 mm	7	6	5
HMA-100000	Contact us for application-specific depth guidance.

Values shown are indicative maximum drilling depths (meters) for popular auger diameters. Your results may vary based on soil composition, moisture content, and machine configuration. Contact us for application-specific recommendations.

Section 2

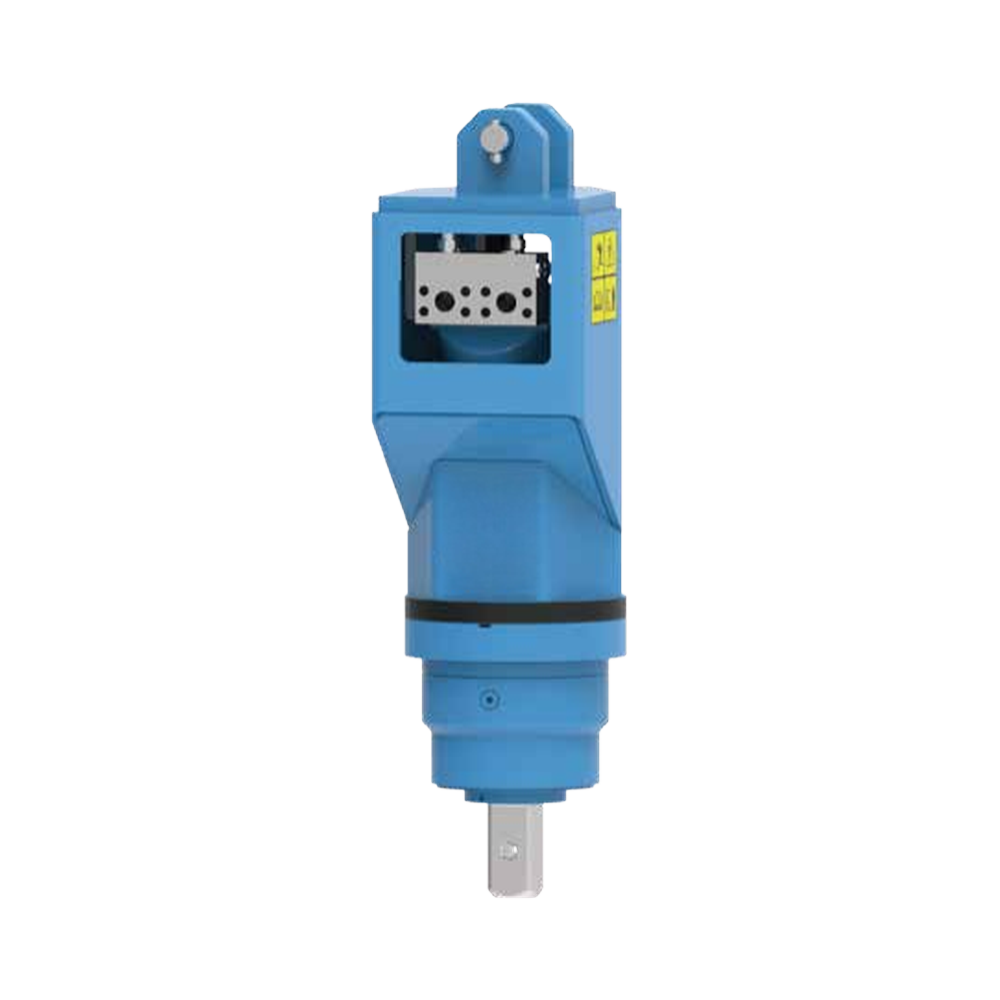

High Speed Auger Drive

Specially designed for high-speed applications, the high speed auger drive delivers rapid rotational output for fast, productive drilling cycles.

Customizable to the machine and application. Contact HM Attachment for models and specifications.

High-speed output for rapid drilling
Suited to small-diameter bores
Customizable configuration

Section 3

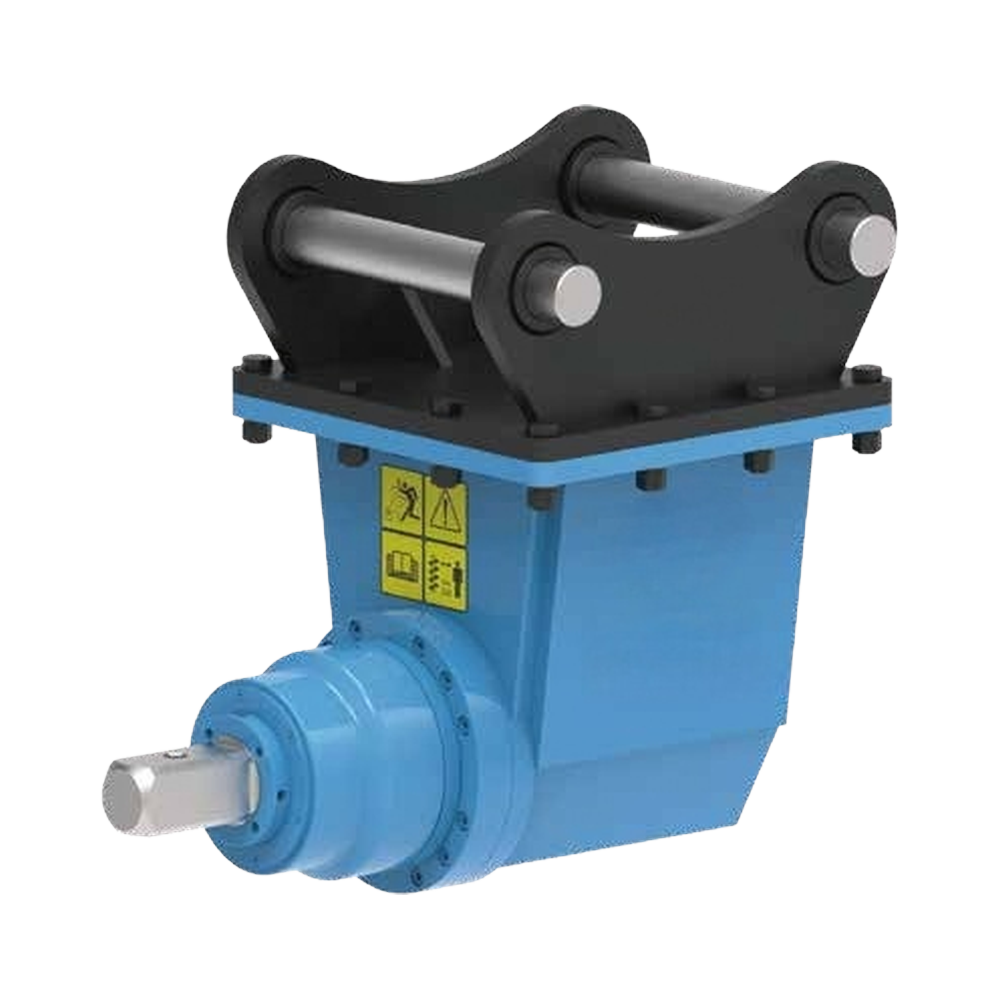

Horizontal Drill Auger Drive

Designed for horizontal drilling and foundation penetrations, this drive provides stable torque and reliable anti-rotation for directional bores.

Customizable to the machine and application. Contact HM Attachment for models and specifications.

Horizontal / directional drilling
Stable torque delivery
Reliable anti-rotation
Customizable configuration
