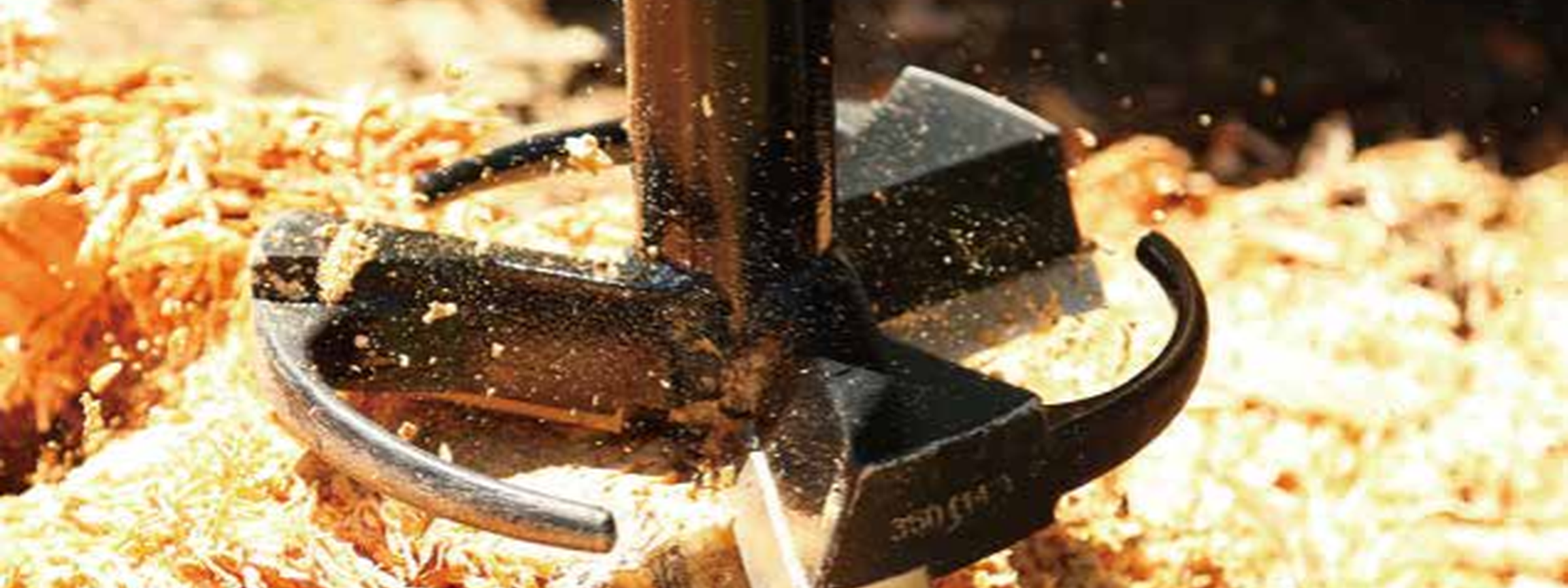

Auger drive work tools — log splitter, core barrel and mixing bowl

HM Attachment / Products / Tools

Tools

Log splitters, stump planers, core barrels, cement mixer bowls and hole cleaners for ground and drilling work.

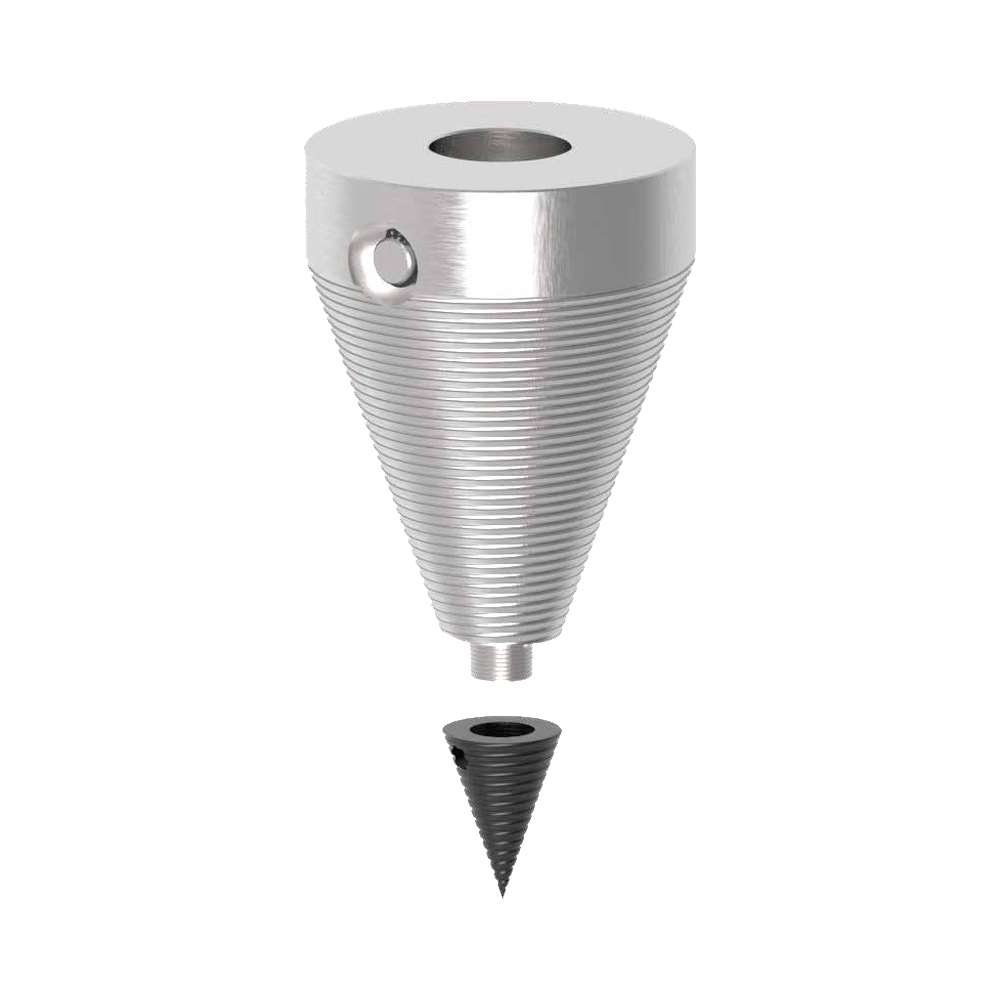

Log Splitter

Log Splitter

ALS-180

Self-guiding log splitter with a replaceable hardened cone tip.

Machine: 1-5 T
Diameter: 180mm
Length: 300mm
Hub: 65 Round
Weight: 14.6 kg

Single Fixing Point
Self Guiding
Conical Profile
Replaceable Hardened Cone Tip

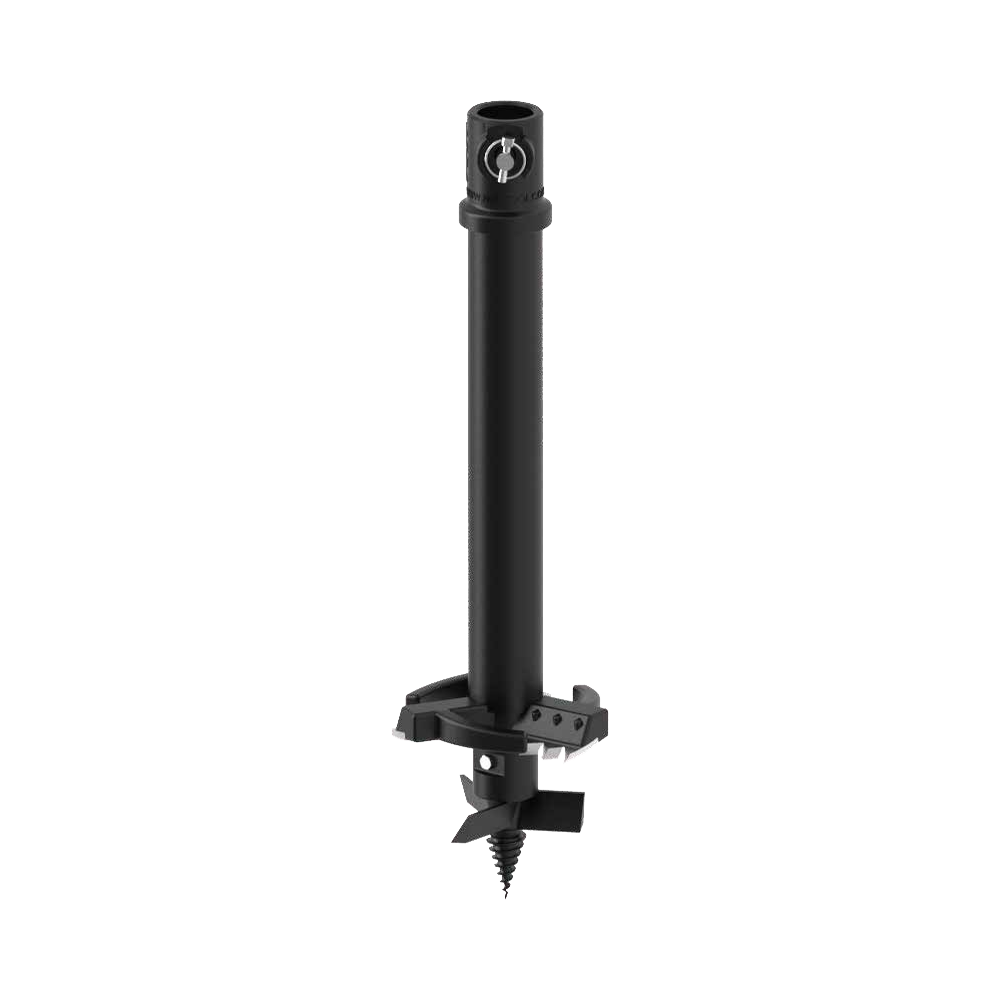

Stump Planer

Stump Planer

ASP series

Z-shaped blade stump planer with two-stage cutting and replaceable tips.

ASP-250: 1-5T / 250mm / 25kg / HMA3000-5000
ASP-350: 4.5-10T / 350mm / 33kg / HMA8000-10000

Z-shaped blade
Two-stage cutting
Replaceable tips

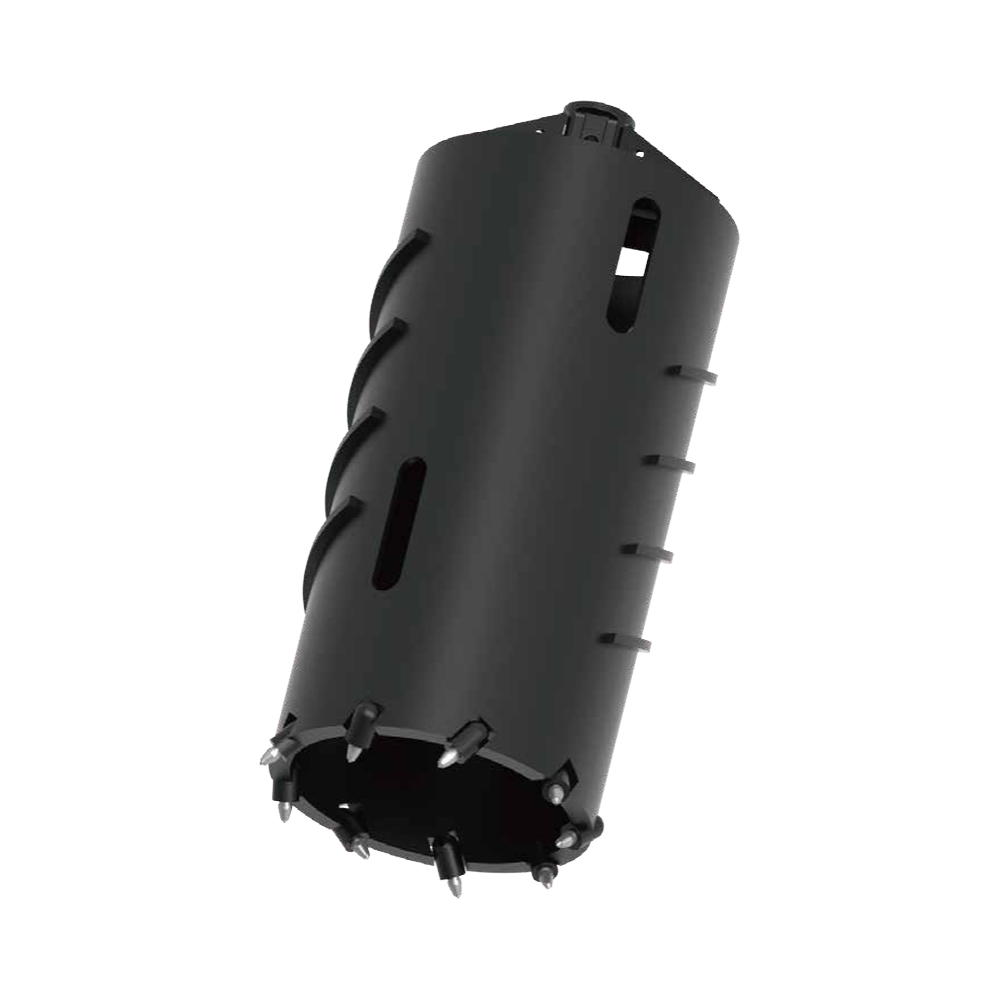

Core Barrel

Core Barrel

ACB series

Rotating pick core barrel for rock coring and trench work.

Cutting dia: 350-1200mm
Barrel length: 1250mm
Wall: 16-20mm
Base ring: 25-40mm
Teeth: 19mm / 38mm Rotating Pick
Weight: 185-1100 kg
Hub: 75 / 110mm Square

9 models
Rotating pick teeth
Square hub mounting

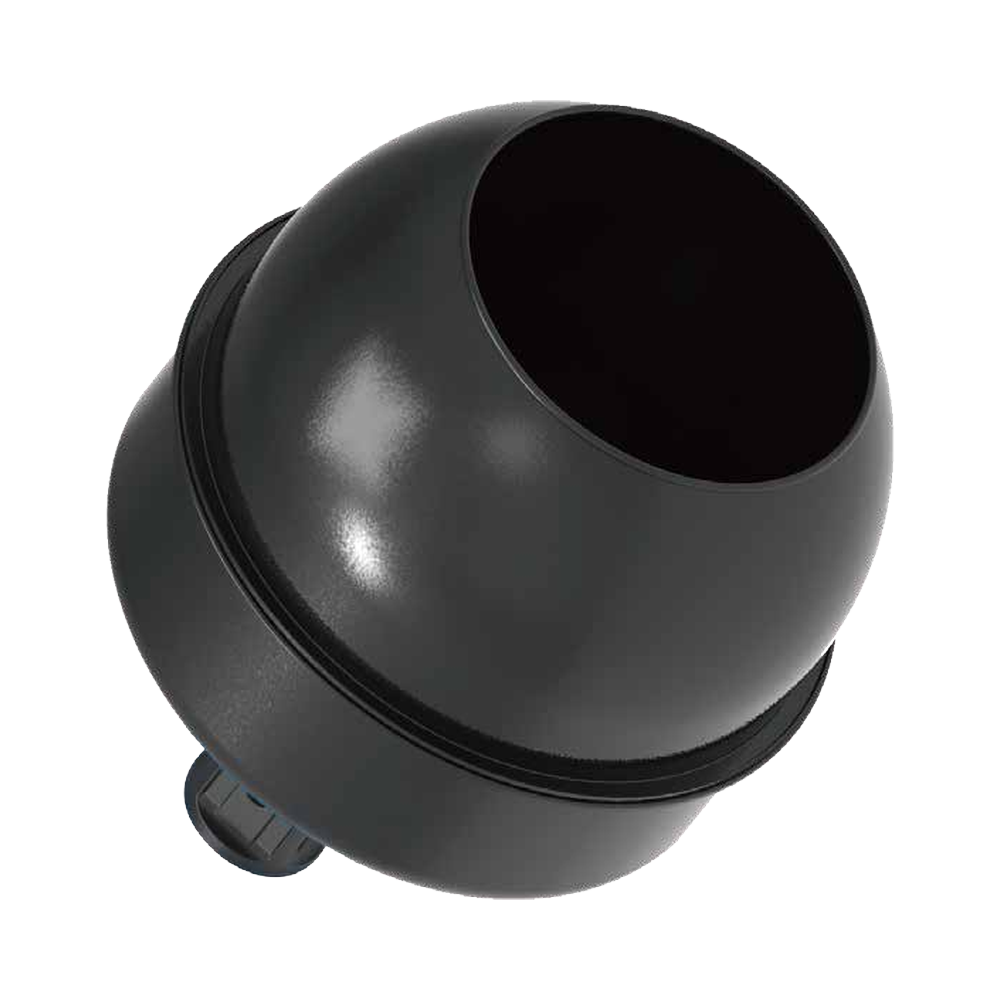

Cement Mixer Bowl

Cement Mixer Bowl

ACM series

Concrete mixing bowl for on-site slurry and mix preparation.

ACM-18065: HMA2000-5000 / 1-8T / 180L / 65 Round / 38kg
ACM-18075: HMA8000-10000 / 1-8T / 180L / 75 Square / 39kg

140 / 180 / 220L options
2 blades
Quick attach

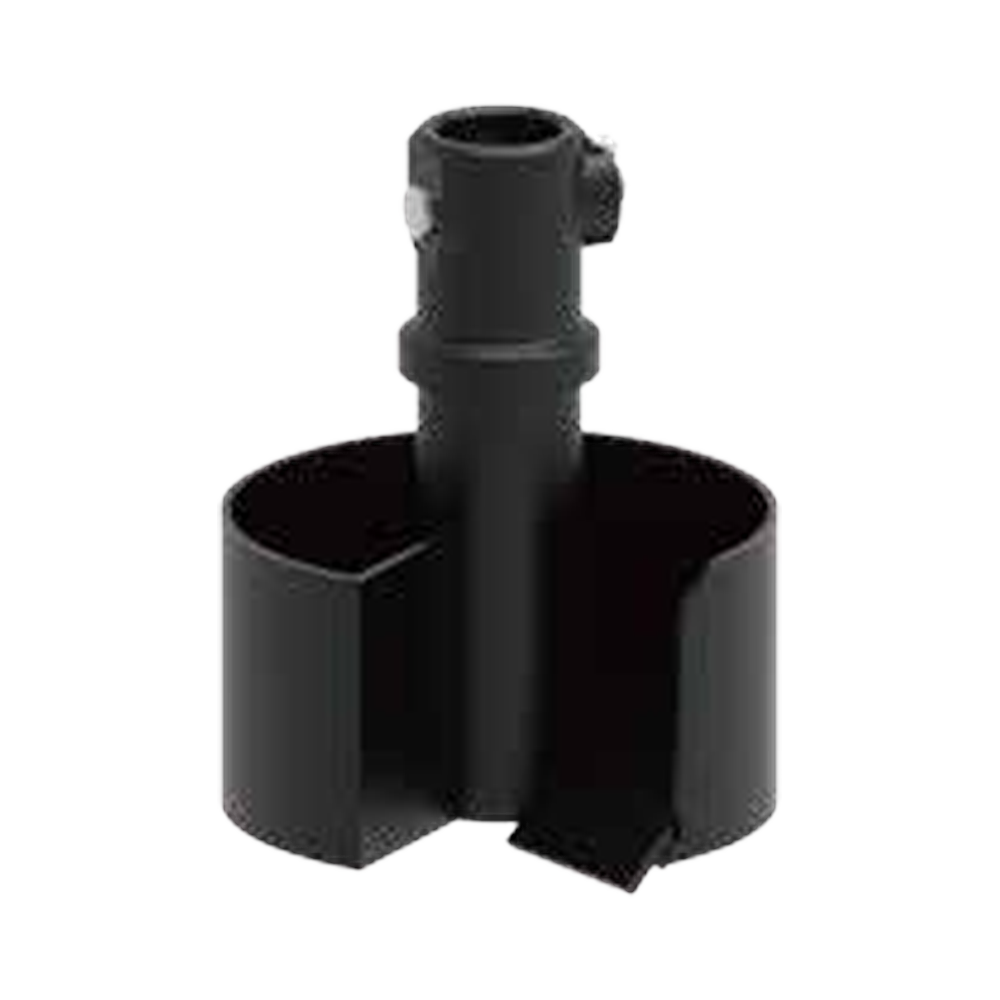

Hole Cleaner

Hole Cleaner

Pre-pile

Pre-pile hole cleaning tool for clearing bore holes before piling.

Use: Pre-pile hole cleaning

Clears loose spoil
Prepares bore for piling

Need a custom tool?

Contact HM Attachment for models, specifications and pricing.
